MAS Multi Array Scanner

MAS

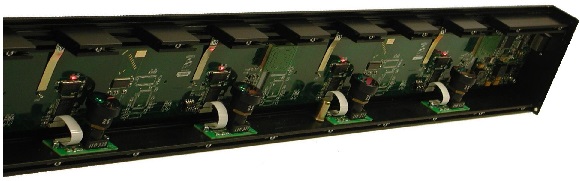

The MAS (multi array scanner) is Matrix┬┤ unique scanner; it consists of multiple 2D cameras (up to 64) that are combined to get a single scan-line or image. As it is a modular system of sections of 320mm the MAS can be ordered in lengths ranging from 320 mm to more than 5 meter.

MAS features:

- The scanner housing is made of black anodised aluminium profiles and has a coated glass window.
- The output of the scanner is software processed to create a frame.
- The electronics of the scanner consists of 1 up to and including 16 modules, every module can have 1, 2 or 4 cameras.
- Every camera can be equipped with a 10, 12, 16, 25, 35 or 50mm lens. Possibly with an application specific filter.
- The data handling of every camera is controlled by a FPGA, this is also used for preprocessing the pixels, available are Bayer color and 3-d processing. Custom made adaption is possible.
- All modules in a scanner must have the same configuration.
- The scan width (this depends on the number of modules inside) is from 32 up to and including 512cm.
- The number of cameras inside is 1 up to and including 64.
- The scanner is available in B/W and color.
- To the scanner belongs a PCI or PCIe interface, with advanced driver software. A Halcon (www.halcon.com) interface is available
- The pixel transfer rate is 20 or 40 MHz.

Download MAS PDF
